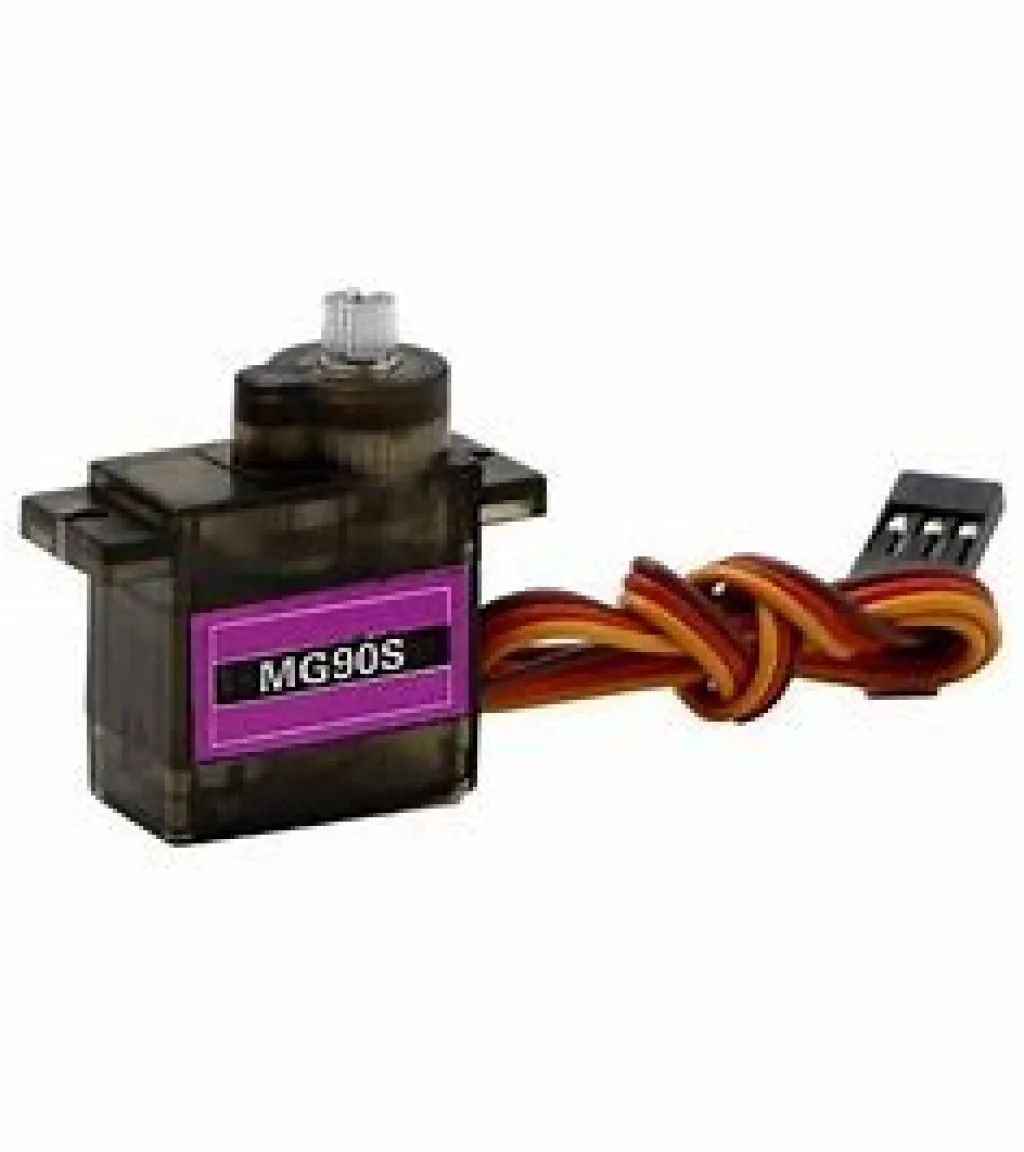

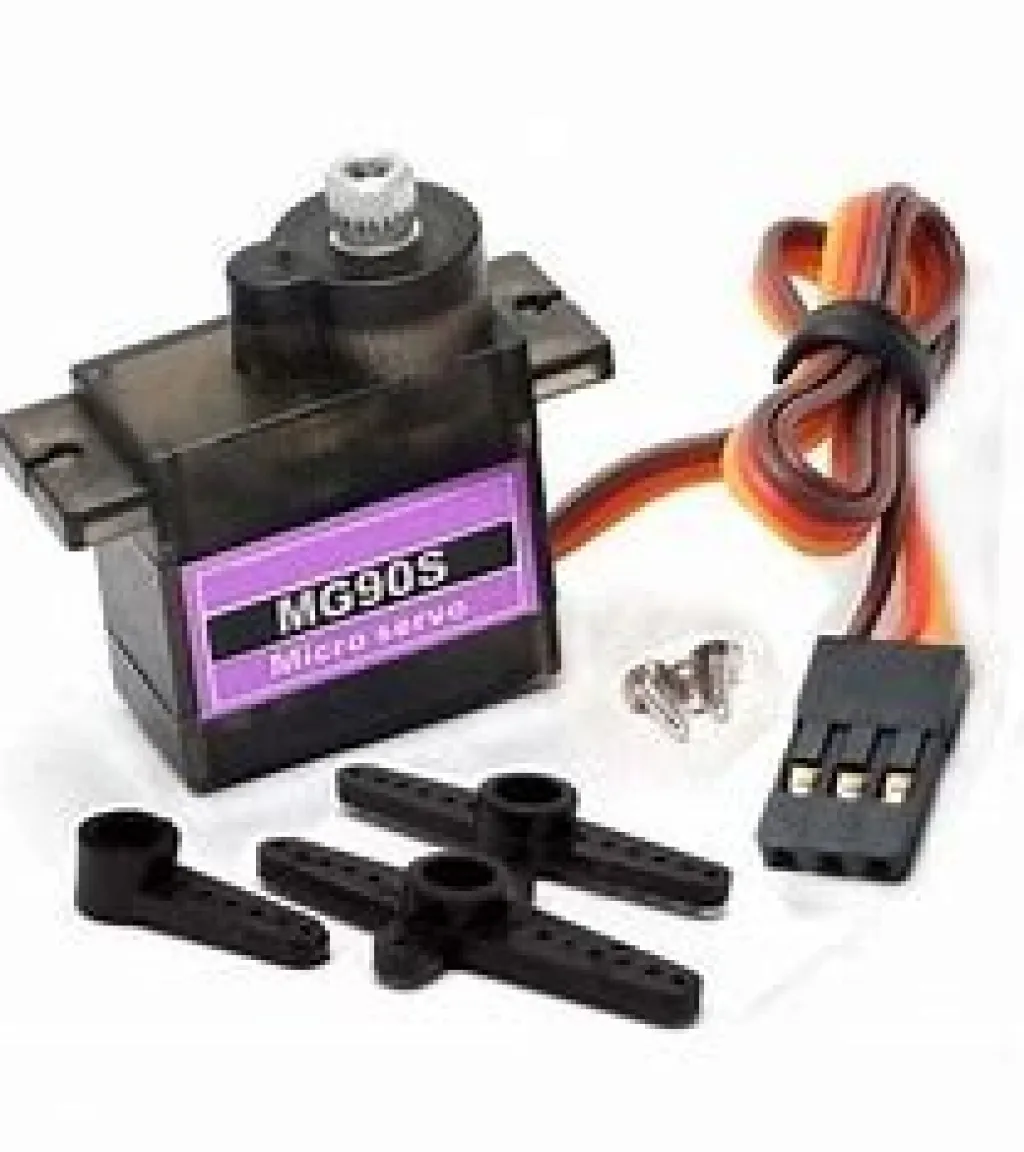

MG90 Servo Motor
Description:
The MG90S is a metal gear micro servo, offering improved strength and durability over plastic gear servos like the SG90. It is a compact and lightweight motor ideal for small-scale applications where space and weight are critical.
Specifications:
Operating Voltage: 4.8V – 6.0V DC
Stall Torque: 1.8 kg·cm (4.8V) / 2.2 kg·cm (6.0V)
Operating Speed: 0.10 sec/60° (4.8V) / 0.08 sec/60° (6.0V)
Gear Type : Metal gears
Motor Type: Core motor
Dead Band: Width ~10 µs
Weight: ~13.4g
Dimensions: 22.8 × 12.2 × 28.5 mm
Control Signal: PWM (Pulse Width Modulation), 50Hz
Rotation Range: ~0° to 180° (depends on PWM signal)
Wiring:
The MG90S has three wires:
Brown: Ground (GND)
Red: Power (VCC, typically 5V)
Orange/Yellow: Signal (PWM input
